Five-face machining provides the flexibility to meet diversified requirements

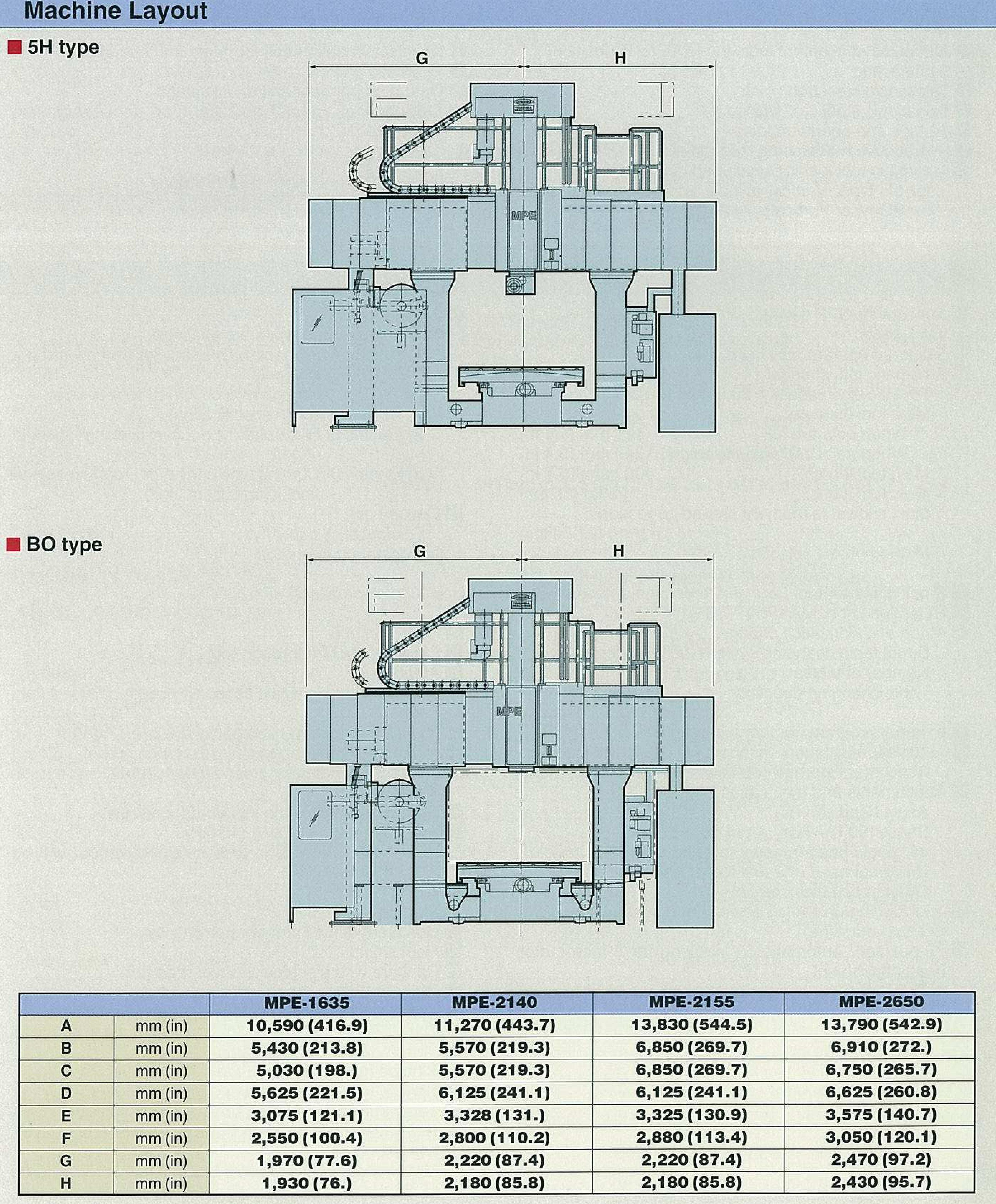

Two types available: the 5H type with a 5-face cutter head and the BO type with a vertical spindle cutter head for the efficient side machining by an optional angle head which is mounted by the AAC
The powerful 18.5/15 kW (25/20 HP) spindle drive motor provides extra heavy-duty machining capacity for the vertical and horizontal spindles
Spindle speed 5H type: 30 – 3000 min-1 BO type: 30 – 4000 min-1
Roller guideways used on X and Y axes for increased rapid traverse rate of 20m/min on the X and Y axes
The optional automatic workpiece changer (AWC) incorporates a newly developed direct table changer system for increased table loading capacity
