Shiba Machine Precision Machinery’s J series standard machine is equipped with a high-performance hydraulic servo injection system and is a popular standard model with better performance.
The quality of the product is affected by the injection performance. Shiba Machine Precision Machinery has cultivated high-performance injection molding in response to the needs of customers for a long time and is equipped with TOSLITE control device that can fully utilize its performance, so as to realize the manufacture and stable production of high-quality die-casting parts, and contribute to the manufacturing industry of customers.

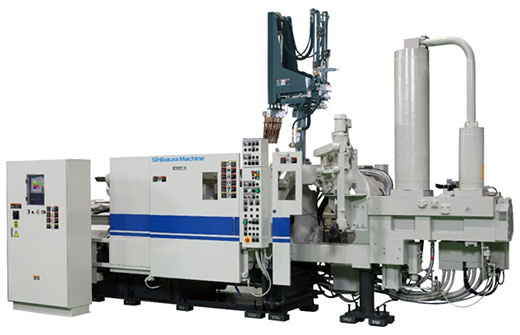

DC350J-MX
Equipped with the advanced hydraulic servo injection system of Shibaura Machinery on the standard machine, with the servo injection technology of the top model, the injection performance with sensitive acceleration and deceleration, it can freely set the casting process conditions for various products.
The analysis of strength and structure is implemented in safety design, and the loss caused by machine failure due to shutdown is minimized.
The clamping part adopts the traditional quick clamping crank method of Toshiba Machinery, which ensures the rigidity of clamping and improves the production cycle.
The traditional C-frame injection hole and the injection hole of the fixed template are processed integrally, which improves the rigidity and ensures the concentricity.
The built-in guide rod makes the ejection part open, and the mold change operation is easier.
The composite injection system can reduce oil leakage and improve hydraulic response and injection performance.
Shibaura Machinery’s unique dual-cylinder injection method can shorten the time interval for reaching the boost pressure after high speed to the shortest, and the speed and pressure time can be independently adjusted to accelerate the filling of the solution in the cavity and increase the density of the product.
The injection stroke sensor is equipped as standard, and after magnetic induction, it provides a signal to the TOSLITE control device for precise control.
The ejector stroke sensor is equipped as standard equipment, and its corresponding stroke is digitally set according to the shape of the product.
Specification item | unit | DC250J-MX | DC350J-MX |
|---|---|---|---|
Clamping force | kN (tons) | 2500 | 3500 |
injection speed | m/s
| 0.05 – 7.0
| 0.05 – 7.0
|
Large pole spacing (height*width) | mm
| 580 × 580 | 650 × 650
|
Die thickness
| mm
| 600 – 300
| 700 – 300
|
Die stroke
| mm
| 360
| 420
|
TOSLITE
| Standard
| Standard
| |

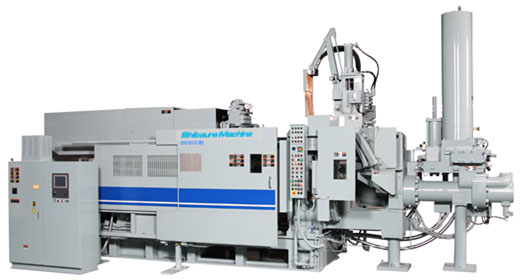

DC800J-MX
Specification item | unit | DC500J-MX | DC650J-MX | DC800J-MX |
|---|---|---|---|---|
Clamping force | kN (tons) | 5000 | 6500 | 8000 |
injection speed | m/s
| 0.05 – 7.0
| 0.05 – 7.0
| 0.05 – 7.0
|
Large pole spacing (height*width) | mm
| 750*750 | 850*850
| 930*930
|
Die thickness
| mm
| 850-350
| 900-350
| 950-400
|
Die stroke
| mm
| 550
| 660
| 760
|
TOSLITE
| Standard
| Standard
| Standard
| |
