The R series is a new generation global standard model of Shibaura Machine with high performance and high controllability. It is equipped with the latest TOSCAST control system on the basis of the hydraulic servo valve injection mechanism with high acceleration and high deceleration performance.
Based on the super performance of the TOSCAST control system, the R series die casting machine can automatically sense the nitrogen pressure, automatically calculate the adjustment range of the casting pressure, and realize the setting of the casting pressure on the TOSCAST interface. In addition, this series of models is equipped with a PQ valve as standard, which can automatically adjust the pressure and flow of mold clamping, product ejection, etc. through the control system.
DC350R-MX
Equipped with the advanced hydraulic servo injection system of Shibaura Machinery on the standard machine, with the servo injection technology of the top model, the injection performance with sensitive acceleration and deceleration, it can freely set the casting process conditions for various products.
The analysis of strength and structure is implemented in safety design, and the loss caused by machine failure due to shutdown is minimized.
The clamping part adopts the traditional quick clamping crank method of Toshiba Machinery, which ensures the rigidity of clamping and improves the production cycle.
The traditional C-frame injection hole and the injection hole of the fixed template are processed integrally, which improves the rigidity and ensures the concentricity.
The built-in guide rod makes the ejection part open, and the mold change operation is easier.
The composite injection system can reduce oil leakage and improve hydraulic response and injection performance.
Shibaura Machinery’s unique dual-cylinder injection method can shorten the time interval for reaching the boost pressure after high speed to the shortest, and the speed and pressure time can be independently adjusted to accelerate the filling of the solution in the cavity and increase the density of the product.
The injection stroke sensor is equipped as standard, and after magnetic induction, it provides a signal to the TOSLITE control device for precise control.
The ejector stroke sensor is equipped as standard equipment, and its corresponding stroke is digitally set according to the shape of the product.
Specification item | unit | DC250R-MX | DC350R-MX |
|---|---|---|---|
Clamping force | kN (tons) | 2500 | 3500 |
injection speed | m/s
| 0.03 – 7.0
| 0.05 – 6.5
|
Large pole spacing (height*width) | mm
| 580 × 580 | 650 × 650
|
Die thickness
| mm
| 600 – 300
| 700 – 300
|
Die stroke
| mm
| 360
| 420
|
TOSCAST-888
| Standard
| Standard
| |

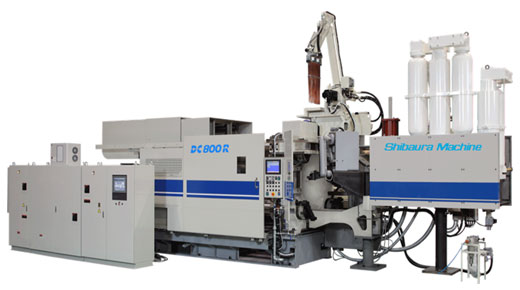

DC800R-MX
Specification item | unit | DC500R-MX | DC650R-MX | DC800R-MX |
|---|---|---|---|---|
Clamping force | kN (tons) | 5000 | 6500 | 8000 |
injection speed | m/s
| 0.03 – 8.0 | 0.03 – 7.0
| 0.03-6.5
|
Large pole spacing (height*width) | mm
| 750*750 | 850*850
| 930*930
|
Die thickness
| mm
| 850-350
| 900-350
| 950-400
|
Die stroke
| mm
| 550
| 660
| 760
|
TOSLITE
| Standard
| Standard
| Standard
| |
Shibaura Machine’s latest R-series standard machine is a next-generation standard machine with higher performance and superior injection performance, control performance, and equipment durability.
The quality of the product is affected by the injection performance. Shibaura Machine has developed high-performance injection molding in response to customers’ needs for a long time, and equipped with new control devices that can fully utilize its performance, so as to realize the manufacture and stable production of high-quality die-casting parts, and contribute to the manufacturing industry of customers.
